Product information page of Programmable Display S8 Series

Economy model with QVGA 256-color

S806C

  • QVGA
  • STN
  • 256 Colors
  • 2ch from
  • 128K SRAM
  • 2ch Serial
  • B USB

S806CD


  • Specifications
  • Dimensions
  • Download

Product specifications

Model5.7-inch
S806CD
DisplayScreen size5.7-inch
Resolution320x240
Display deviceSTN color LCD
Display color/tone256 colors
BacklightLED
Luminance adjustmentFixed
Toch switch Touch switch Analog resistive switch
Mechanical lifeA million times or more
External
interface
spec.
COM1(D-Sub 9-pin(F))RS-422/485; Asynchronous; Data length: 7bits, 8bits; Parity: even, odd, none; Stop bit: 1bit, 2bits
Baud rate: 4800, 9600, 19200, 38400, 76800, 115200, 187500 *1 bps
COM2(D-Sub 9-pin(M))RS-232C; Asynchronous; Data length: 7bits, 8bits; Parity: even, odd, none; Stop bit: 1bit, 2bits
Baud rate: 4800, 9600, 19200, 38400, 76800, 115200bps
USBType B (Ver 1.1)
Clock and
user memory
Screen memory (FROM)2MB
Backup memory (SRAM)128KB*2
ClockAvailable
Backup period5 years (Ambient temperature 25 degree C)
Calendar accuracyAccuracy: Plus or minus 90 seconds
(Ambient temperature 25 degree C)
Power supplyRated voltageDC24V
Voltage tolerable rangeDC24V plus or minus 10%
Physical
environment
Operating ambient temp.0 - 50 degree C
Storage ambient temp.-10 - 60 degree C
Relative temperatureLess than 85%RH
(With no dew condensation. Max wet bulb temp. shall be less than 39 deg. C)
Operating altitudeAltitude below 2000 meters
Operating atmosphereNo corrosive gas or much dust. (No conductive dust.)
Pollution degreeLevel 2
Installation
condition
Outside dimention (mm)182.5x138.8x44.8
Panel cutout (mm)174x131(+0.5/-0)
Color of chassisBlack
Protective structureFront panel: Compatible with IP65 (when water-proof gasket is used.)
Rear chassis: Compatible with IP20; Form: Integrated; Installation method: Panel embedded mounting
CertificationCEEN61000-6-2 and EN61000-6-4 certified
  • *1 Available only with Siemens MPI-connection
  • *2 Except S806M10D

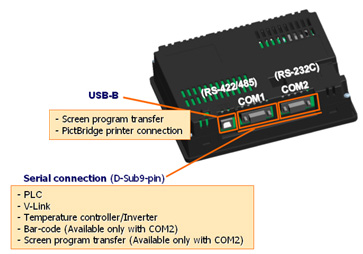

Interfaces

Simple interface

Specialized simple interface for communication with FA equipments

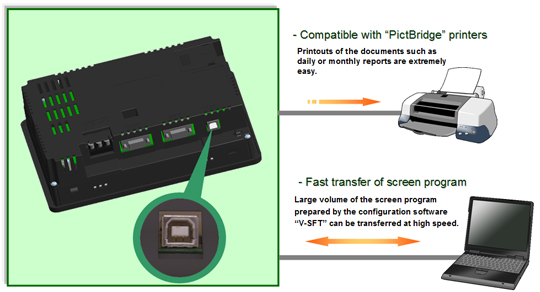

USB port is available as standard equipment

Slave (USB-B) interface



Printers can be selected easily.

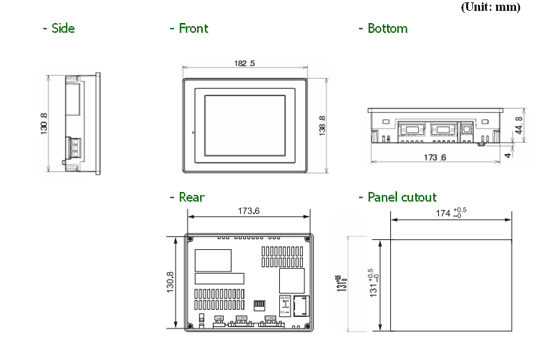

Dimensions



S806C series

Download data of V815 Series

ItemDescriptionLanguageUpdated dateFile size
Hardware SpecificationsHardware Specifications for S8 Series Eng12/1/20093,470 KBDownload
Connection ManualThe connection and communication parameters for the S8 series and controllers are explained in details. Eng4/19/201311,847 KBDownload
CADCAD Data of S806 seriesEng02/04/20103,898KBDownload
