Product information page of Programmable Display TECHNOSHOT TS1000series

Compact and highly functional

TS1070/TS1071 series

  • CE, KC
  • 7 inches
  • WVGA
  • 64K Coloers
  • TFT
  • LED Backlight
  • 3ch Serial [D-sub 9x2]
  • USB Master/Slave
  • Ethernet
　 　
  • Specifications
  • Dimensions
  • System Configuration
  • Download

Specifications of TS1070/TS1071

Model TS1070i TS1070 TS1071i
Display Display size 7” Wide
Resolution 800 × 480 dots
Display device TFT color LCD
Colors 65,536 colors
Backlight LED
Luminance 450 cd/m²
Touch switch Analog resistance film
Memory FROM 10.5 MB
SRAM 128 KB
External interface Serial COM1 RS-422/485, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200/187500 * 1bps
COM2 & COM3 RS-232C, Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps
RS-422/485(two-wire system), Asynchronous, Data length: 7,8 bits,
Parity: even/odd/none, Stop bit: 1,2 bits
Baud rate: 4800/9600/19200/38400/57600/76800/115200 bps
Ethernet 100BASE-TX/10BASE-T - 100BASE-TX/10BASE-T
USB (Type A) 1 port (Ver. 2.0,Ver.1.1)
USB (Type mini B) 1 port (Ver. 2.0,Ver.1.1)
Clock Battery Coin-type lithium primary battery
Calendar accuracy Gap±5 sec. per month (Ambient temperature 25 °C)
Power supply Permissible range of voltage DC 24 V ± 10 %
Demand
(maximum rating) 		16 W or less
Physical environment Ambient operating temperature 0~50 °C * 2
Ambient storage temperature -10~60 °C * 2
Relative humidity 85 % RH or less(without dew condensation, Max. wet bulb temperature: 39 °C or less)
Operation altitude 2,000 meters or less
Operation atmosphere Not exposed to corrosive gas or excessive dust (free of conductive dust)
Contamination level Level 2
Installation conditions Dimensions
W × H × D 		215.0 × 155.0 × 42.0 mm
Panel cutout
W × H 		189.0 × 134.0 mm (+0.5/-0)
Protect structure Front panel: Compatible with IP65 (when waterproof gasket * 3is used.), Rear cabinet: Compatible with IP20
Form: Single unit, Installation method: Panel mounting
Case color Black
Compatibility CE, KC CE, KC, UL, cUL
  • *1 Available only when connected with SIEMENS MPI.
  • *2 Keep wet bulb temperature under 39°C to avoid an accident.
  • *3 Option

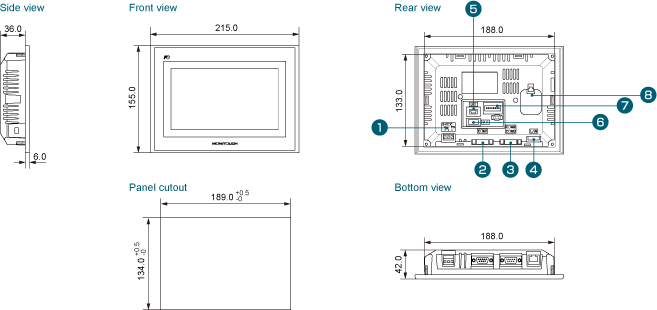

Outline drawing of TS1070/TS1071

(Unit: mm)

　
Part Names
  1. 1Power supply terminal
  2. 2Serial D-sub 9-pin (COM1)
  3. 3Serial D-sub 9-pin (COM2/COM3)
  4. 4100BASE-TX/10BASE-T connector (LAN)
  5. 5USB slave (Type mini B)
  6. 6USB master (Type A)
  7. 7DIP switch
  8. 8Battery

System configuration of TS1070/TS1071

　

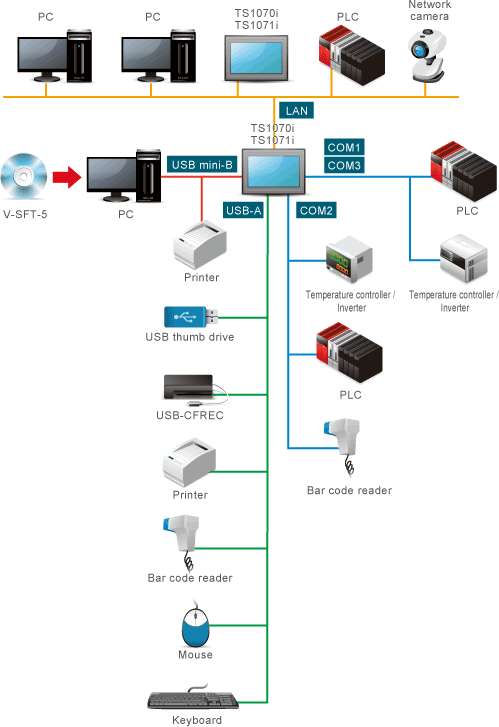

TS1070i/TS1071i

　

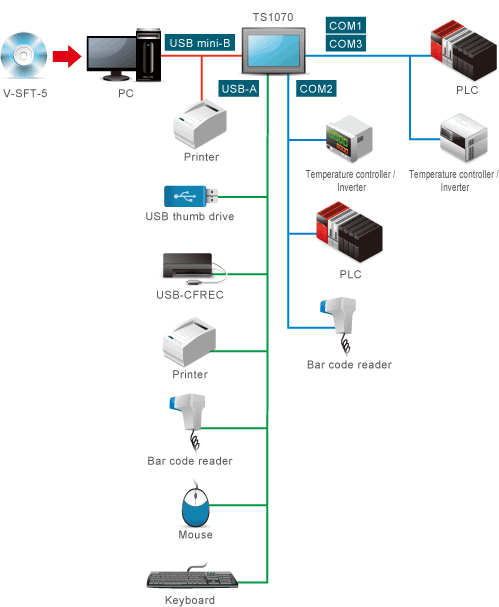

TS1070

　

Download data of TS1070/TS1071

Item Description Language Updated date File size
Hardware Specifications TECHNOSHOT hardware specifications English 2013/6/7 4,122KB Download
Connection Manual Contains instructions about the wiring and setting of communication signals between TECHNOSHOT units and controllers. English 2013/5/14 26,959KB Download
Training Manual Contains instructions for beginners on how to create a TS panel screen. English 2013/4/1 9,868KB Download
Catalog TECHNOSHOT product catalog English 2014/9/25 7,443KB Download
