TS2060/TS2060i Series

Product information page of Programmable Display TECHNOSHOT TS2000 Series

Compact and highly functional

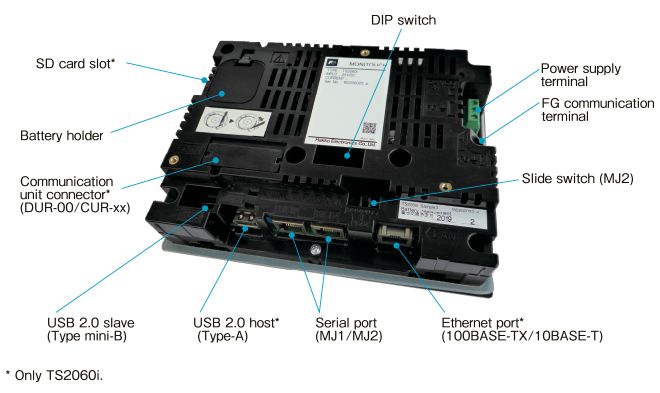

TS2060i

TS2060

Specifications

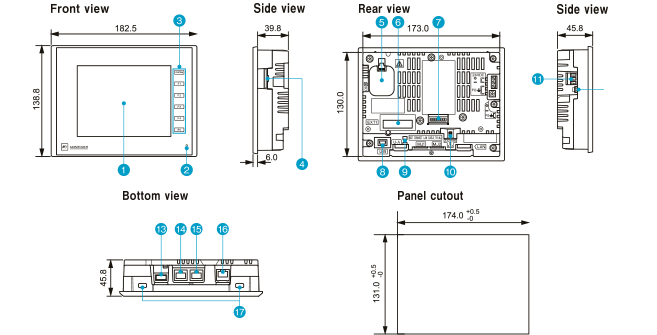

Dimensions

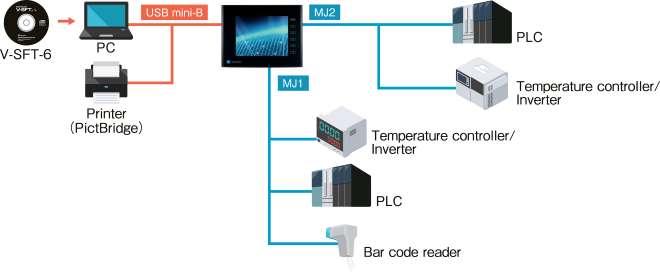

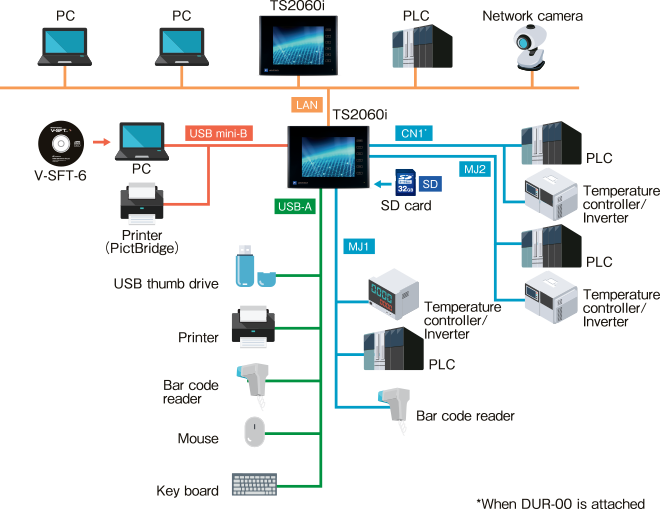

System Configuration

Basic specifications

		TS2060
Power supply	Rated voltage	24VDC
	Permissible range of voltage	24VDC ± 10%
	Permissible momentary power failure	Within 1ms
	Demand (maximum rating)	13W or less
Insulation resistance		Between DC external terminal and FG: 500VDC 10MΩ or more
Physical environment	Ambient temperature	0 degC ~ +50 degC *1
	Ambient humidity	85%RH or less (without dew condensation) *1
	Operation altitude	2,000 meters or lower
	Atmosphere	Not to be exposed to corrosive gas, or conductive dust
	Storage temperature	-10 ~ 60 degC *1
	Storage humidity	85%RH or less (without dew condensation) *1
	Overvoltage category	Category II
	Contamination level	Level 2
Mechanical operating conditions	Resistance to oscillation	Complies with JIS B 3502 (IEC61131-2) Vibration frequency: 5-9Hz, pulsating with:3.5mm, 9-150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Mechanical operating conditions	Resistance to shock	Complies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z: 3 directions, three times each (18 times in total)
Electric operating conditions	Resistance to noise	Noise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Electric operating conditions	Resistance to static discharge	Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions	Grounding	Grounding resistance: Less than 100Ω, FG/SG separation
	Protection Structure	Front panel: Complies with IP65 (when waterproof gasket is installed) Rear cover: Complies with IP20
	Installation method	Panel mounting
	Cooling system	Natural air cooling
	Dimensions WHD(mm)	182.5 x 138.8 x 45.8mm
	Panel cutout (mm)	174.0(-0,+0.5) x 131.0(-0,+0.5) mm (same as V806/V606e)
Case color		Black
Battery		Coin type lithium battery, lifetime: 5 years (ambient temperature 25 degC)
Material		PC

*1: Wet-bulb temperature should be 39°C or lower to prevent malfunction.

Performance specifications

		TS2060	TS2060i
Screen program memory （FROM）		2.5MB	10.5MB
Backup memory （SRAM）		128KB	512KB
Stroke fonts		N/A	Supported
Display	Display device	TFT color
	Resolution	320 x 240
	Display size	5.7" (QVGA)
	Colors	65,536 colors (selection of 32K/256/128/monochrome available with software configuration.)
	Backlight	LED
	Backlight lifetime	50,000 hours
Touch switch	Type	Analog resistance film
Function switches	Number of the function switches	6
External interface	D-Sub 9-pin *2	N/A	RS-232C/ RS-422/485, Asynchronous type, Data length: 7, 8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
	Modular 8-pin（MJ1/MJ2）	RS-232C/ RS-422 (4-wire) 3, RS-485 (two-wire), Asynchronous type, Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 bps 4
	SD card	N/A	1 slot, as standard equipment (SD/SDHC card)
	Ethernet	N/A	1CH, 100Mbps/10Mbps
	USB	Type mini-B(Ver.2.0)	Type A、Type mini-B(Ver.2.0)
	Communication unit	N/A	CUR-xx supported
Clock	Backup period	5 years (Ambient temperature 25 degC)
Clock	Calendar accuracy	W/ power supply: gap ±210 sec. per month (Ambient temperature 25 degC) W/o power supply: gap ±90 sec. per month (ambient temperature 25 degC, when battery backup is used.)
Standards	CE	EN61000-6-2, EN61000-6-4
	UL/cUL	UL61010-1, UL61010-2-201
	KC	Compliant

*2: Available only when DUR-00 is attached to TS2060i.
*3: Only MJ2 supports 4-wire system.
*4: 187500bps is available only when connected with SIEMENS MPI/PPI . MPI/PPI connection is supported only with MJ2.
