Product information of Programmable Operator Interface TS4000series

TS4070i

  • ts4000_icon

*1 Available as 3ch by using COM2/COM3 simultaneously.

ts4070i

TS4070i
DC

  • Specifications
  • Dimensions
  • Model

General Specifications

Item TS4070i
Power
Supply		 Rated Voltage 24VDC
Permissible Range of Voltage ±10％
Permissible
Momentary
Power Failure		 Within 1ms
Power
Consumption
(Max. Rating)		 8W or less
Rush Current 20A or less, 4.0ms (Ambient temperature 25°C)
Insulation Resistance Between DC external terminal and FG: 500VDC, 10M or more
Physical
Environment		 Operating Ambient
Temperature		 0～50℃ *1
Operating Ambient
Humidity		 85%RH or less (without dew condensation,
max. wet-bulb temperature 39°C or lower) *1
Operating Altitude 2,000m or less
Operating Atmosphere No exposure to corrosive gas or conductive dust
Storage Ambient
Temperature		 -10～60℃ *1
Storage Ambient
Humidity		 5%RH or less (without dew condensation,
max. wet-bulb temperature 39°C or lower) *1
Pollution Degree 2
Mechanical
Operating
Conditions		 Resistance
to Oscillation		 JIS B 3502 (IEC61131-2) compliant
Vibration frequency: 5 to 9Hz, Half amplitude: 3.5mm,
Vibration frequency: 9 to 150Hz,
Constant acceleration: 9.8m/s2 (1G)
X, Y, Z: 3 directions 10 times each
Resistance
to Shock		 JIS B 3502 (IEC61131-2) compliant
Peak acceleration: 147m/s2 (15G),
X,Y,Z: 3 directions, 3 times each (18 times in total)
Electric
Operating
Conditions		 Resistance
to Noise		 Noise voltage: 1,000Vp-p, pulse width: 1s, pulse rise time: 1ns
(by noise simulator)
Resistance
to Static Discharge		 IEC61000-4-2 compliant, Contact: 6kV, air: 8kV
Installation
Conditions		 Grounding Grounding resistance: Less than 100 , FG/SG separation
Structure Protection structure:
Front case: IP65 (when water-proof gasket is used)*2
Rear case: IP20 Installation method: panel mounting
Cooling System Natural air cooling
Dimensions
W×H×D(mm)		 198.8 × 141.8 × 38.0
Panel Cutout
W×H (mm)		 189(+0.5/-0)×134(+0.5/-0)
Weight
(display only)		 Approx. 0.6kg
Case Color Black (Surface sheet: Silver)
Material PBT+GF30 resin
  • *1 Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.
  • *2 Waterproof gasket is available as an option. When waterproof gasket is not used, it is equivalent to IP40.

Performance Specifications

Item TS4070i
Screen Memory (FROM) 128MB
Backup Memory (SRAM) 230KB
Display Display Device TFT color
Resolution WVGA：800×480
Screen Size 7.0” wide
Display Colors 16.77 million colors *3
Backlight LED
Backlight Life Approx. 45,000 hours
Touch Switch Type Analog resistance film
Function Switch Quantity -
External Interface D-Sub 9-pin
(female) × 1
(COM1)		 RS-422/RS-485 (4-wire or 2-wire type is switched by DIP switches)
Asynchronous Data length: 7, 8 bits Parity: Even, odd, none
Stop bit: 1, 2 bits
Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *4 bps
D-Sub 9-pin
(male) × 1 *5
(COM2/COM3)		 COM2:RS-232C COM3:RS-485 (2-wire type)
Asynchronous Data length: 7, 8 bits Parity: Even, odd, none
Stop bit: 1, 2 bits
Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
Ethernet(RJ-45) ×1 IEEE802.3(10BASE-T)/IEEE802.3u(100BASE-TX) compliant,
Compatible with Auto-MDIX
Wireless LAN -
SD Card -
USB×2 Type-A(Ver. 2.0), Type mini-B(Ver. 2.0)
AUDIO Output -
Clock Backup Period 5 years (Ambient temperature 25°C)
Calendar Accuracy Gap ±80 sec. per month
(Ambient temperature 25°C, When the battery is backed up)
Standard CE·UKCA EMC direction: EN61000-6-2, 6-4
RoHS direction: EN IEC63000 Battery regulation: Compatible
UL･cUL UL61010-1/UL61010-2-201(E313548)
KC Compatible
Radio Act -
Classification Standard -
  • *3 For displaying pictures and 3D parts only. Other parts are displayed in 65,536 colors.
  • *4 Only for Siemens MPI/PPI.
  • *5 COM2/COM3 can be used simultaneously.

Interface

Interface

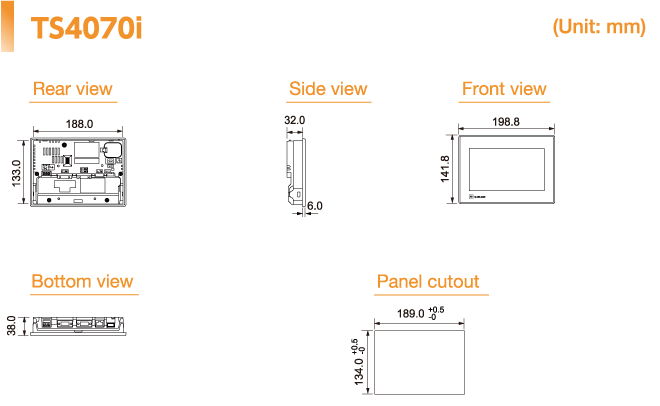

Dimensions and Panel Cutout

Dimensions and Panel Cutout

Model

Model
