Product information of Programmable Operator Interface X1 series

X1121iSD/X1121iSRD

プログラマブル表示器”X1 series

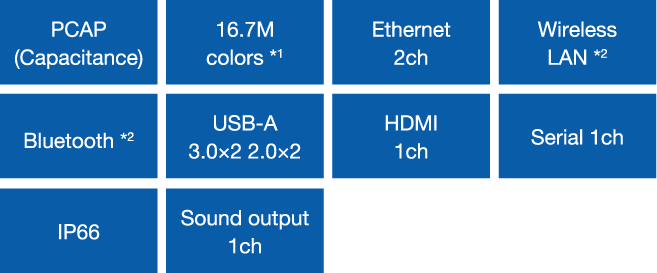

X1 spec

*1 Only pictures and 3D parts available for HMI screens
*2 Only R-type available

  • Specifications
  • Dimensions
  • System Configuration
  • Model

General Specifications

Item X1121iSD X1121iSRD
Power Supply Rated Voltage DC24V
Permissible Range of Voltage ±10%
Permissible Momentary Power Failure Within 1ms
Power Consumption (Max. Rating) 41W or less
Rush Current 24A or less, 6ms (Ambient temperature 25°C)
Insulation Resistance   Between DC external terminal and FG: DC500V 10MΩ or higher
Physical
Environment
Ambient Temperature 0 to 45°C
Ambient Humidity 85%RH or less (without dew condensation, max. wet-bulb temperature: 39°C or lower)
Operating Altitude 2,000m or less
Operating Atmosphere No exposure to corrosive gas or conductive dust
Storage Ambient Temperature -10 to 60°C
Storage Ambient Humidity 85%RH or less (without dew condensation, max. wet-bulb temperature: 39°C or lower)
Contamination Level 2
Mechanical
Operating
Conditions
Resistance to Oscillation JIS B 3502 (IEC61131-2) compliant
Vibration frequency: 5 to 9 Hz, Half amplitude: 3.5 mm, 9 to 150 Hz, Constant acceleration 9.8 m/s2 (1G)
X, Y, Z: 3 directions (10 times each)
Resistance to Shock JIS B 3502 (IEC61131-2) compliant
Peak acceleration: 147 m/s2 (15G), X,Y,Z: 3 directions, 3 times each (18 times in total)
Electric
Operating
Conditions
Resistance to Noise Noise voltage: 1,000Vp-p, Pulse width: 1 s, Pulse rise time: 1ns
(by noise simulator)
Resistance to Static Discharge Complies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation
Conditions
Grounding D class grounding (3rd-class grounding)
FG/SG is internally connected in the X1 series.
Protection Structure Front case: IP66 (when water-proof gasket is used), Rear case: IP20
Cooling System Natural air cooling
Dimensions W*H*D (mm) 320 × 241 × 66.7 mm
Panel Cutout (mm) 309 × 230 mm
Weight Approx. 3.2 kg
Case Color Black
Material PBT and GF30 resin (front part)

Performance Specifications

Item X1121iSD X1121iSRD
Hardware Processor Intel Atom® ×5-E3940
Number of Cores / Number of Threads 4/4
Main Memory 4GB
Internal Storage SSD(3D NAND):64GB (free space 30GB)
Software OS Windows 10 IoT Enterprise 2019 LTSC(64bit)
Display Display Device TFT color
Resolution WXGA:1,280 × 800
Display Size 12.1” widescreen
Colors 16.7 million colors (for HMI screens, pictures and 3D parts only)
Contrast Ratio 1,000:1
Backlight LED
Backlight Life Approx. 50,000 hours
Touch Switch   PCAP (Capacitive type)
External Interface Ethernet (RJ-45) × 2 10BASE-T/100BASE-TX/1000BASE-T
Serial Port (RJ- 45) × 1 Asynchronous: RS-232C/RS-422/RS-485 (switchable)
Data length: 7, 8 bits Parity: Even, odd, none Stop bit: 1, 2 bits
Baud rate: 4800, 9600, 19200, 38400. 57600, 76800, 115200 bps
USB-A Ver. 3.0 × 2 Ver.3.0
(Low speed: 1.5Mbps, Full speed: 12Mbps, High speed: 480Mbps, Super speed: 5.0Gbps)
USB-A Ver. 2.0 × 2 Ver.2.0
(Low speed: 1.5Mbps, Full speed: 12Mbps, High speed: 480Mbps)
Sound Output (AUDIO) × 1 3.5 stereo mini jack, line output
Wireless LAN (WLAN) 1 × WLAN
IEEE 802.11 ac/a/b/g/n
Bluetooth 1 × Bluetooth
HDMI 1,280 × 800
Clock Backup Period 3 years (Ambient temperature 25°C)
Standard CE Marking Compatible
UL / cUL UL61010-1/UL61010-2-201
KC Compatible
Radio Act *1 Japan: MIC, USA: FCC, Canada: ISED, Europe: RED, South Korea: KC, Taiwan: NCC
  • *1: Models with wireless LAN only.

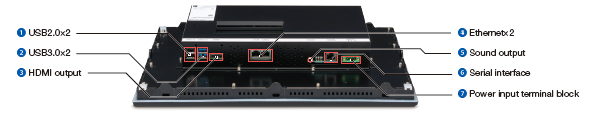

Interface

Interface

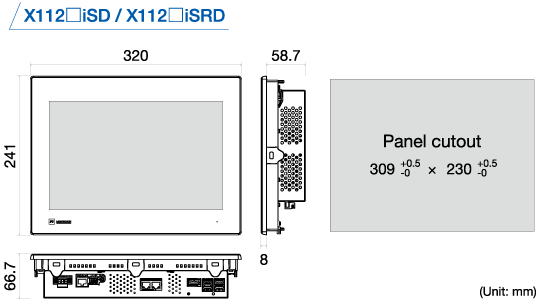

Dimensions and Panel Cutout

Dimensions and Panel Cutout

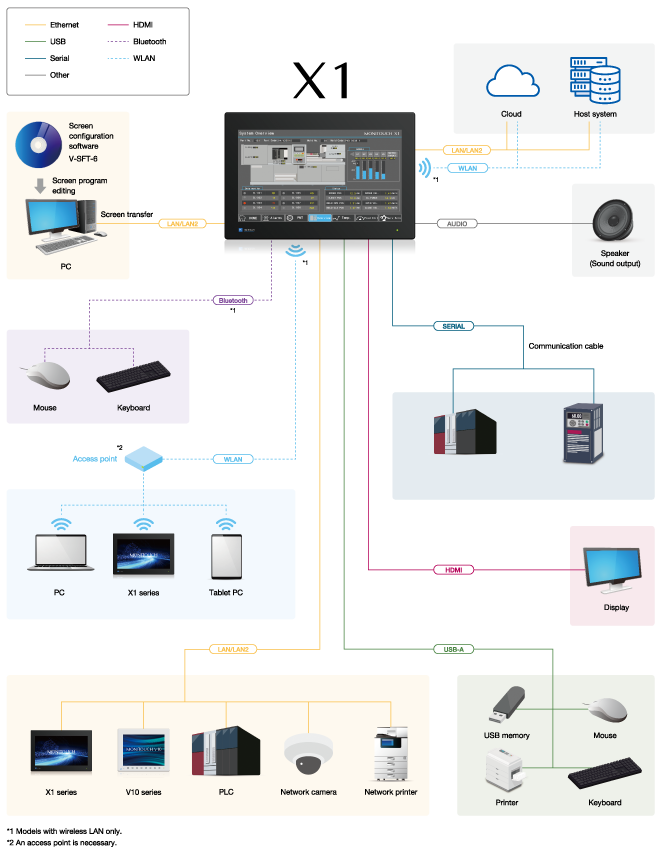

System Configuration

System Configuration

Model

Model
