Product information of Programmable Operator Interface V10series

V1008iS

  • v10_standard_icont-j_svga

*1 For displaying pictures, 3D parts, video, and RGB input (excluding high-speed mode) only.
*2 2CH for extended wired LAN products
*3 Wireless LAN compatible products only
*4 Requires installation of optional unit GUX-xx on V10 series G type.

V1008is series

V1008iSD
Wireless LAN

V1008is series

V1008iSBD
Wireless LAN

  • Specifications
  • Dimensions
  • System Configuration
  • Model

General Specifications

Item V1008iSD
Power
Supply		 Rated Voltage DC24V
Permissible
Range of Voltage		 ±10%
Permissible
Momentary Power
Failure		 Within 1ms
Power Consumption(Max. Rating) 25W or less
Rush Current 21A or less, 6ms(Ambient temperature 25°C)
Insulation Resistance Between AC external terminal and FG: 500V DC, 10M or more
Between DC external terminal and FG: 500V DC, 10M or more
Physical
Environment		 Operating Ambient
Temperature		 0~50°C *1
Operating Ambient
Humidity		 85%RH or less (without dew condensation, max. wet-bulb temperature 39°C or lower)*1
Operating Altitude 2,000m or less
Operating
Atmosphere		 No exposure to corrosive gas or conductive dust
Storage Ambient
Temperature		 -10~60°C *1
Storage Ambient
Humidity		 85%RH or less (without dew condensation, max. wet-bulb temperature 39°C or lower) *1
Pollution Degree 2
Mechanical
Operating
Conditions		 Resistance
to Oscillation		 JIS B 3502 (IEC61131-2) compliant
Vibration frequency 5 to 9Hz, Half amplitude: 3.5mm, 9 to 150Hz,
Constant acceleration: 9.8m/s2 (1G)
X, Y, Z 3 directions 10 times each
Resistance
to Shock		 JIS B 3502 (IEC61131-2) compliant
Peak acceleration: 147m/s2 (15G), X,Y,Z 3 directions, 3 times each (18 times in total)
Electric
Operating
Conditions		 Resistance
to Noise		 Noise voltage: 1,500Vp-p,
pulse width: 1μs,
pulse rise time: 1ns
(by noise simulator)
Resistance to Static
Discharge		 IEC61000-4-2 compliant, Contact: 6kV, air: 8kV
Installation
Conditions		 Grounding Grounding resistance: Less than 100, FG/SG separation
Structure Protection structure: Front case: IP66, Type 4X/13*2 (when water-proof gasket is used),
Rear case: IP20
Installation method: panel mounting
Cooling System Natural air cooling
Dimensions
W*H*D (mm)		 235.0×180.0×48.7
Panel Cutout
W*H (mm)		 220.5(+0.5/-0)×165.5(+0.5/-0)
Weight
(display only)		 Approx. 1.4kg
Case Color Front case, Surface sheet: Light gray / Black (black model)
Rear case: Light gray
Material PBT+GF30 resin
  • *1 Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.
  • *2 DC products only.

Performance Specifications

Item V1008iSD
Screen Memory (FROM） 256MB
Backup Memory (SRAM) 900KB
Display Display Device TFT color
Resolution 800×600
Display Size 8.4 inches
Display Colors 16.77 million colors *3
Backlight LED
Backlight Life Approx. 70,000 hours
Touch Switch Type Analog resistance film
Function Switch Quantity 8
External Interface D-Sub 9-pin
(CN1)		 RS-232C/RS-422/RS-485
Asynchronous, Data length: 7, 8 bits Parity: Even, odd, none
Stop bit: 1, 2 bits
Baud rate: 4800, 9600, 19200, 38400. 57600, 76800, 115200, 187500*4 bps
Modular 8-pin
(MJ1/MJ2)		 RS-232C/RS-485 (2-wire type)
Asynchronous, Data length: 7, 8 bits Parity: Even, odd, none
Stop bit: 1, 2 bits
Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
Ethernet 1CH *5 IEEE802.3(10BASE-T)/IEEE802.3u(100BASE-TX)/
IEEE802.3ab(1000BASE-T) compliant, Compatible with Auto-MDIX
Wireless LAN *6 IEEE802.11b/g/n compliant (2.4GHz band)
SD Card Compatible with 1CH SD/SDHC/SDXC card (max. 2TB), Class10, UHS-I
USB Type A(Ver.3.0) 1CH,Type mini-B(Ver.2.0) 1CH
Sound Output 1CH
Clock Backup Period 5 years (Ambient temperature 25°C)
Calendar Accuracy Gap ±90 sec. per month (Ambient temperature 25°C, When the battery is backed up)
Standard CE・UKCA *7 EN61000-6-2,EN61000-6-4
UL・cUL *7 UL61010-1/UL61010-2-201(E313548), UL121201(E315977) *8*9
KC Compatible
Radio Act *6 *7 MIC(Japan), FCC(USA), ISED(Canada), KC(South Korea)
Classification Standard
*7 *10 *11		 Nippon Kaiji Kyokai (NK), Lloyd's Register of Shipping (LR), American Bureau of Shipping (ABS),
Det Norske Veritas (DNV)
  • *3 For displaying pictures, 3D parts, video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
  • *4 Only for Siemens MPI
  • *5 2CH for extended wired LAN products
  • *6 Wireless LAN compatible products only
  • *7 DC products only.
  • *8 Hardware Ver. b or later.
  • *9 For models incompatible with UL121201, please contact us.
  • *10 Excluding wireless LAN compatible products.
  • *11 Serial No.2312xxxxx or later.

Interface

Interface

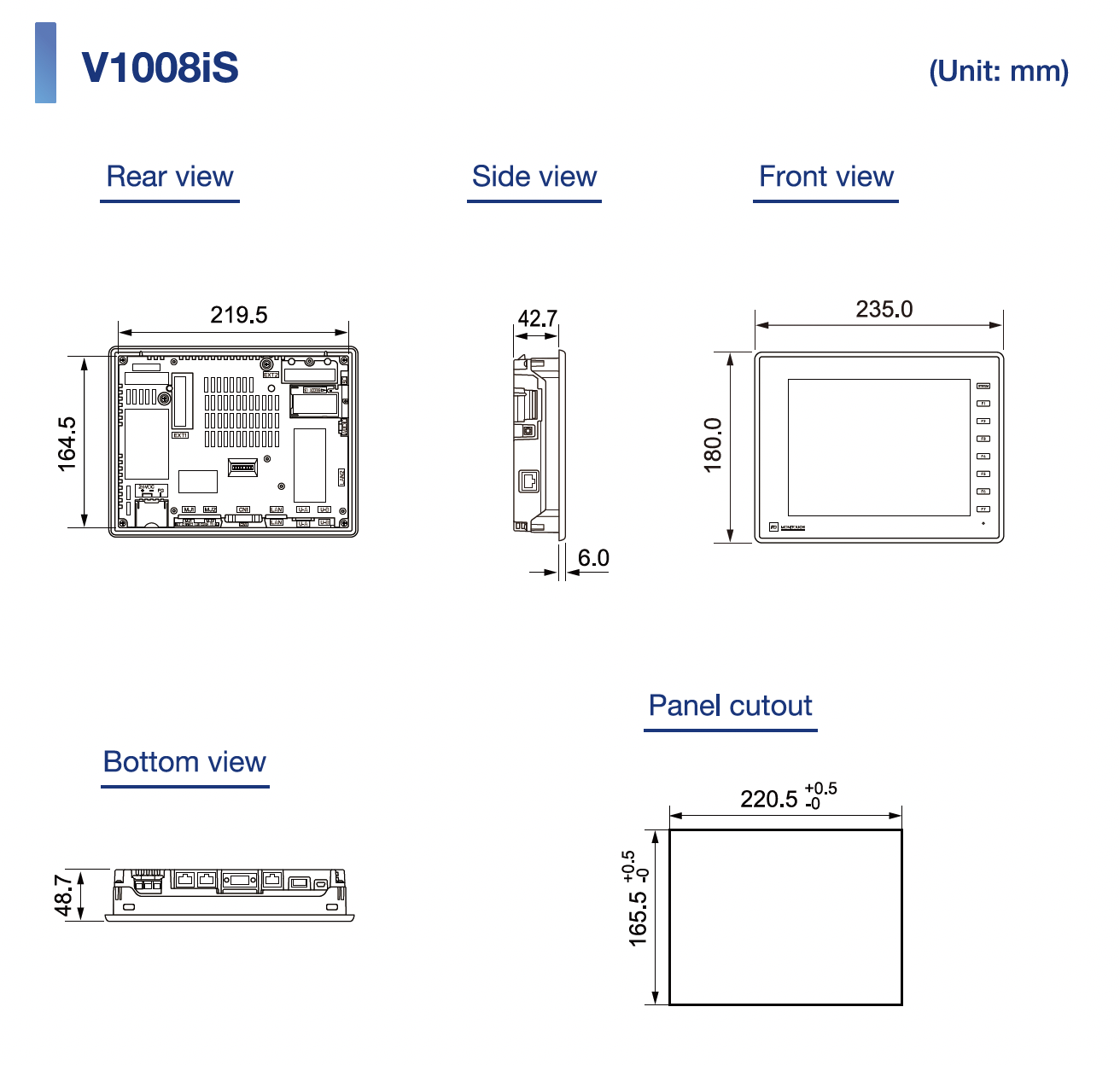

Dimensions and Panel Cutout

Dimensions and Panel Cutout

System Configuration

System Configuration
  • *1 Wireless LAN compatible products only.
  • *2 LAN2 is available only in products with extended wired LAN.
  • *3 Only the V10 series G type can be used with the optional unit GUX-xx attached.
  • *4 Compatible with EPSON ESC/P-R, HP HPLIP, OKI COREFIDO only. Wireless LAN connection is possible for wireless LAN compatible products.

Model

Model
  • *1 Requires installation of optional unit GUX-xx on V10 series G type.
  • *2 Hardware Ver.b or later. For models incompatible with UL121201, please contact us.
  • *3 Serial No. 2312xxxxx or later
  • *4 The rear case is light gray.
