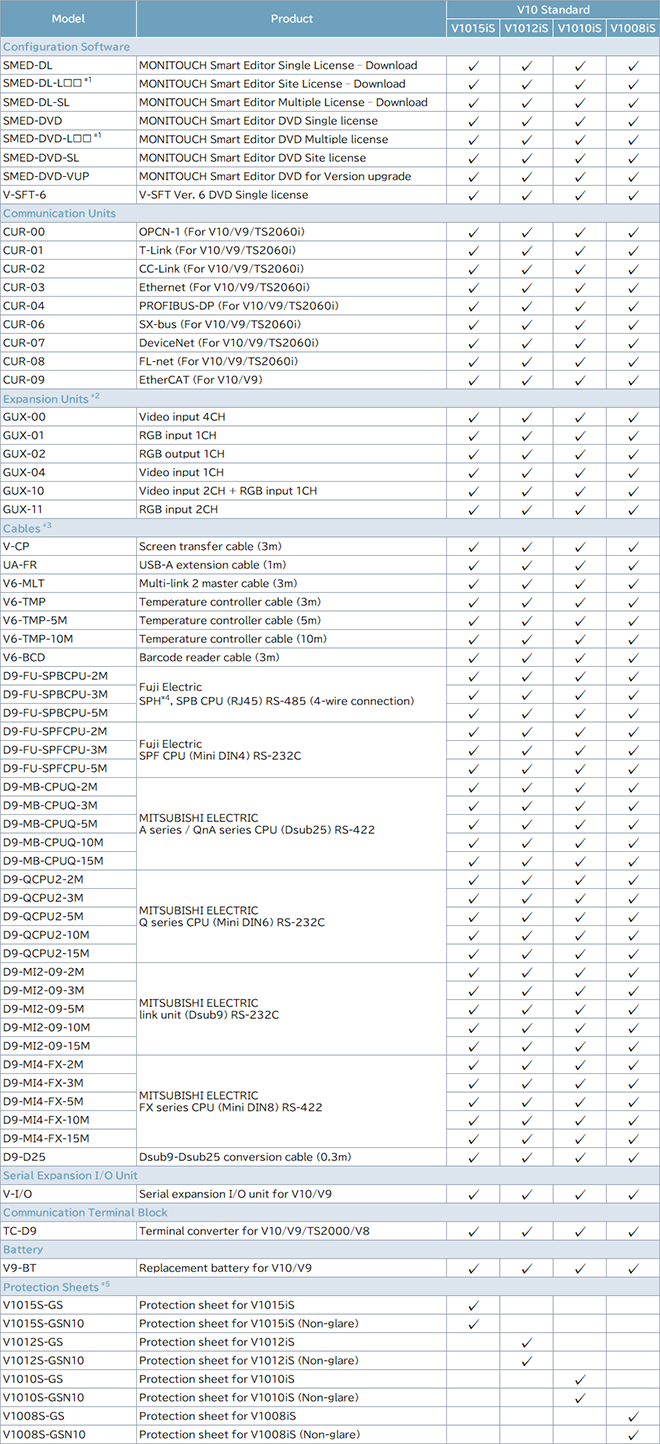

Accessories

Extension Units^*1

• GUX-00 (Video input 4ch)
  Displays images from video cameras on V10 directly.
• GUX-01 (RGB input 1ch)
  Displays RGB input on V10.
• GUX-02 (RGB output 1ch)
  Displays images of V10 on a monitor.
• GUX-04 (Video input 1ch)
  Displays images from a video camera directly.
• GUX-10 (Video input 2ch + RGB input 1ch)
  Displays images from video camera and RGB input on V10 simultaneously.
• GUX-11 (RGB input 2ch)
  Displays RGB images such as PC images through two channels on V10 simultaneously.

*1 GUX-xx is only for use with G-type in the V10 series. Click here for details

Communication Units

Configuration software

MONITOUCH Smart Editor

Editable Models:
X1/V10/V9/TECHNOSHOT/V8/TELLUS Ver.5/TELLUS Ver.4/TELLUS Ver.3/TELLUS-HMI iPad

>Requirements

V-SFT-6（Ver.6）

Editable Models:
X1/V10/V9/TECHNOSHOT/V8/TELLUS Ver.5/TELLUS Ver.4/TELLUS Ver.3/TELLUS-HMI iPad

>Requirements

Cables

Type	Configuration	Connected to
V-CP		PC
V6-BCD		Bar code reader
V6-MLT		MONITOUCH V10/V9/V8/V7/V6
V6-TMP		Temperature controller, inverter, etc.
UA-FR		Card reader/ writer, USB memory, etc.

Other Accessories

V-I/O (Serial expansion I/O unit)

This is an expansion I/O unit that connects to the MONITOUCH modular jack.
Maximum 16 points can be used for both input and output.

TC-D9 (Terminal converter)

Connects V10 with other units via RS-422/485 terminal.

V9-BT

A replacement lithium battery for V10 series.

V10xxS-GS/V10xxS-GSN10

Protection sheets for panels. N10 is a non-glare type sheet.
(5 sheets per set)

D9-D25

Replacement cable for CN1 cable of V6/V7 series.
Length: 0.3m

Panel adapter (PAD-Vxxx)

Used when fitting V10 into V4/GD-80/GD-65/GD-64 panel cutout.
Contact our technical helpdesk for details.
