Multi-output

Various switches that meet the individual needs

In order to meet diversified needs, switches with various functions are installed.
Switches can be used without macro or PLC ladder programming.

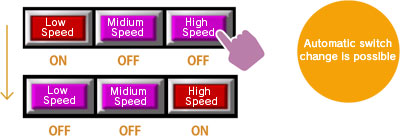

Multi-output memory
Output up to 16 positions

Switches have a multi-output function, turning on just one switch makes the other switches turn off. It is also possible to output bit signals up to 16 positions.

　

Indication depends on the valueAvailable in summer 2008

In addition to the bit ON/OFF status, it is possible to set various switch conditions according to the value.

　　　　
N=0N=1N=2N=3

Setting the switch timing freely

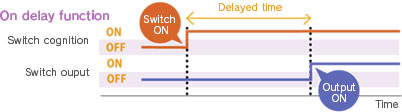

ON delay

It is possible to set switch functions such as requiring holding down the button for a certain time. This function prevents a false operation of the switch.

　

Setting the switch timing freely

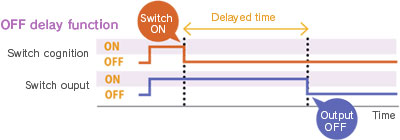

OFF delay

Switch output is retained for a certain time after reset of the switch.

　
