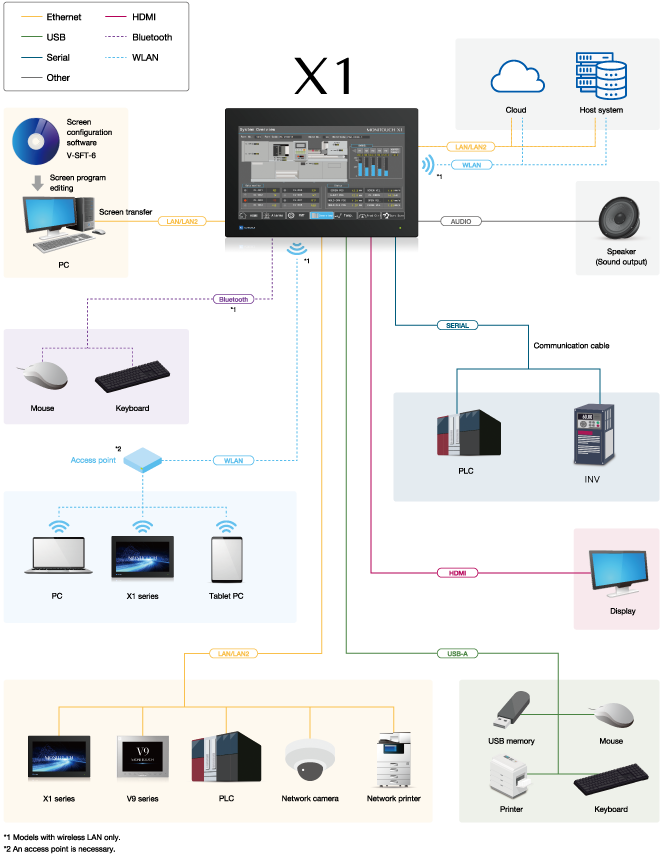

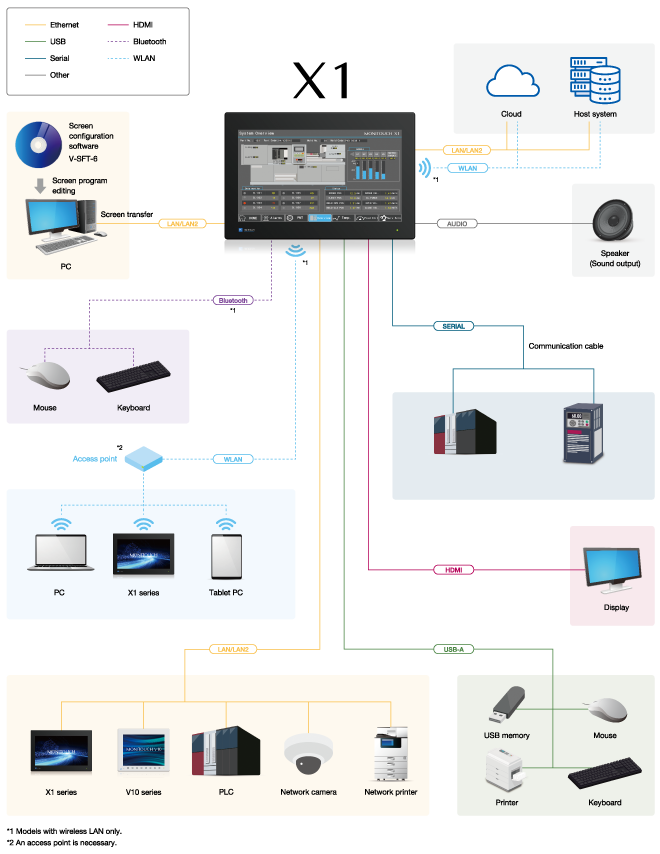

*1 Only pictures and 3D parts available for HMI screens *2 Only R-type available
Item | X115□iSD | X115□iSRD | |
---|---|---|---|
Power Supply | Rated Voltage | DC24V | |
Permissible Range of Voltage | ±10% | ||
Permissible Momentary Power Failure | Within 1ms | ||
Power Consumption (Max. Rating) | 51W or less | ||
Rush Current | 24A or less, 6ms (Ambient temperature 25°C) | ||
Insulation Resistance | Between DC external terminal and FG: DC500V 10MΩ or higher | ||
Physical Environment | Ambient Temperature | 0 to 45°C | |
Ambient Humidity | 85%RH or less (without dew condensation, max. wet-bulb temperature: 39°C or lower) | ||
Operating Altitude | 2,000m or less | ||
Operating Atmosphere | No exposure to corrosive gas or conductive dust | ||
Storage Ambient Temperature | -10 to 60°C | ||
Storage Ambient Humidity | 85%RH or less (without dew condensation, max. wet-bulb temperature: 39°C or lower) | ||
Contamination Level | 2 | ||
Mechanical Operating Conditions | Resistance to Oscillation | JIS B 3502 (IEC61131-2) compliant Vibration frequency: 5 to 9 Hz, Half amplitude: 3.5 mm, 9 to 150 Hz, Constant acceleration 9.8 m/s2 (1G) X, Y, Z: 3 directions (10 times each) | |
Resistance to Shock | JIS B 3502 (IEC61131-2) compliant Peak acceleration: 147 m/s2 (15G), X,Y,Z: 3 directions, 3 times each (18 times in total) | ||
Electric Operating Conditions | Resistance to Noise | Noise voltage: 1,000Vp-p, Pulse width: 1 s, Pulse rise time: 1ns (by noise simulator) | |
Resistance to Static Discharge | Complies with IEC61000-4-2, contact: 6kV, air: 8kV | ||
Installation Conditions | Grounding | D class grounding (3rd-class grounding) FG/SG is internally connected in the X1 series. | |
Protection Structure | Front case: IP66 (when water-proof gasket is used), Rear case: IP20 | ||
Cooling System | Natural air cooling | ||
Dimensions W*H*D (mm) | 406 × 271 × 68.2 mm | ||
Panel Cutout (mm) | 395 × 260 mm | ||
Weight | Approx. 3.9 kg | ||
Case | Color | Black | |
Material | PBT and GF30 resin (front part) |
Item | X115□iSD | X115□iSRD | |
---|---|---|---|
Hardware | Processor | Intel Atom® ×5-E3940 | |
Number of Cores / Number of Threads | 4/4 | ||
Main Memory | □:1 4GB □:2 8GB *1 | ||
Internal Storage | SSD(3D NAND):64GB (free space 30GB) | ||
Software | OS | Windows 10 IoT Enterprise 2019 LTSC(64bit) | |
Display | Display Device | TFT color | |
Resolution | FHD:1,920 × 1,080 | ||
Display Size | 15.6” widescreen | ||
Colors | 16.7 million colors (for HMI screens, pictures and 3D parts only) | ||
Contrast Ratio | 1,000:1 | ||
Backlight | LED | ||
Backlight Life | Approx. 50,000 hours | ||
Touch Switch | PCAP (Capacitive type) | ||
External Interface | Ethernet (RJ-45) × 2 | 10BASE-T/100BASE-TX/1000BASE-T | |
Serial Port (RJ- 45) × 1 | Asynchronous: RS-232C/RS-422/RS-485 (switchable) Data length: 7, 8 bits Parity: Even, odd, none Stop bit: 1, 2 bits Baud rate: 4800, 9600, 19200, 38400. 57600, 76800, 115200 bps | ||
USB-A Ver. 3.0 × 2 | Ver.3.0 (Low speed: 1.5Mbps, Full speed: 12Mbps, High speed: 480Mbps, Super speed: 5.0Gbps) | ||
USB-A Ver. 2.0 × 2 | Ver.2.0 (Low speed: 1.5Mbps, Full speed: 12Mbps, High speed: 480Mbps) | ||
Sound Output (AUDIO) × 1 | 3.5 stereo mini jack, line output | ||
Wireless LAN (WLAN) | ー | 1 × WLAN IEEE 802.11 ac/a/b/g/n | |
Bluetooth | ー | 1 × Bluetooth | |
HDMI | 1,920 × 1,080 | ||
Clock | Backup Period | 3 years (Ambient temperature 25°C) | |
Standard | CE Marking | Compatible | |
UKCA | Compatible *2 | ||
UL / cUL | UL61010-1/UL61010-2-201 | ||
KC | Compatible | ||
Radio Act *3 | Japan: MIC, USA: FCC, Canada: ISED, Europe: RED, South Korea: KC, Taiwan: NCC |
