  4. V815N series 제품소개
Product information page of Programmable Display V8 Series

V815N series

  • 15inches
  • TFT
  • 64K color
  • 3ch serial
  • CF
  • AB USB
  • COM I/F
  • XGA

XGA 65,536F Flagship model


  • Ethernet
  • option
  • RGB option
  • option
  • 사양
  • 외형도

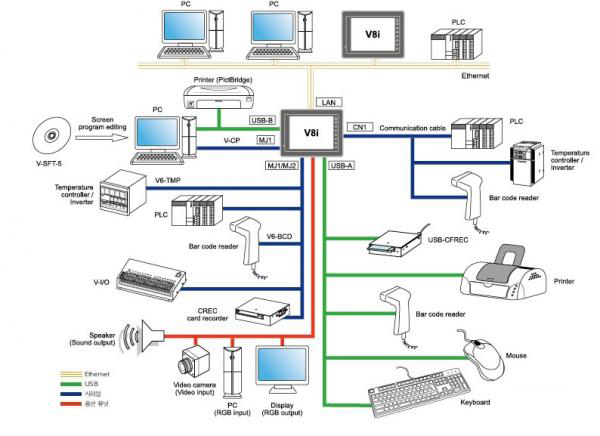

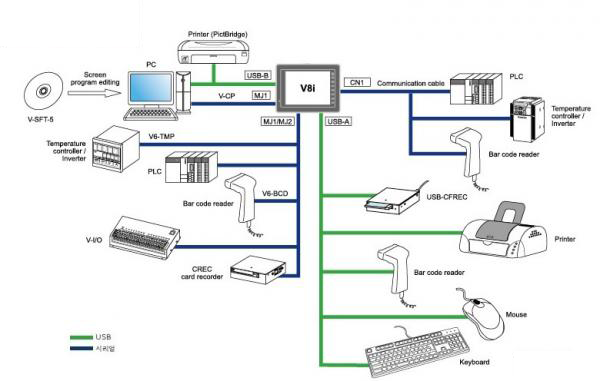

  • 스템구성
  • 다운로드
  • Models


V815iXN V815iXDN
Power supply Rated voltageAC100-240VDC24V
Permissible range of voltageAC100-240V±10%DC24V±10%
Permissible momentary power failureWithin 20msWithin 1ms
Demand (maximum rating)90VA or less40W or less
Inrush current20A,10ms(AC100V)30A,1ms
Insulation resistance DC500V 10MΩ or more
Physical environment Operation ambient temperature0°C – +40°C
Storage ambient temperature-10°C – +50°C
Operation ambient humidity85“RH or less (without dew condensation, Max. wet bulb temperature: 39°C or lower) *1
AtmosphereNot exposed to corrosive gas or conductive dust
Operation altitude2,000 meter or lower
Contamination level *2 Level 2
Mechanical Resistance to oscillationVibration frequency: 10–150Hz, acceleration: 9.8m/s 2(1.0G) pulsating width: 0.075mm, X,Y,Z: 3 directions 1 hour each way
Resistance to shockPulse shape: half-sine, peak acceleration: 147m/s 2(15G), X,Y,Z: 3 directions, six times each way
Electric Noise proof1500Vp-p (pulse width 1 s, pulse rise time : 1ns)1000Vp-p (pulse width 1 s, pulse rise time : 1ns)
Static dischargeComplies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions GroundingGrounding resistance : Less than 100 Ω, FG/SG separation
StructureProtect structure: Front panel: Compatible with IP65 (when water-proof gasket is used.)
Rear cover: Compatible with IP20
Form: Single unit
Installation method: Panel mounting
Cooling systemNatural air cooling
Dimensions W×H×D(mm)382.8×312.8×81.1
Panel cutout (mm)369.4×299.4(+0.5/-0)
Material Aluminum
  • *1 Keep wet bulb temperature under 39 to avoid an accident.
  • *2 Contamination level is an index that shows the incidence rate of conductive substance. At Level 2, only nonconductive substance is produced, but a temporary conductive state may occur due to dew concentration.


Display specifications Screen memory12.5MB
Display deviceTFT color LCD
Resolution W:H(dots)1024×768
Display size15 inches
Colors65,536 colors (without blinks)/ 32,768 colors (with blinks)
Backlight Auto OFFLit in normal (Set by the user)
Power lampLit in normal condition, blinks in alarm condition such as blowout of backlight bulbs
Contrast adjustmentFixed
Brilliance control3 levels (Adjusted to 128 steps by macro command
Number of characters 1/4 size127 columns × 96 lines
1-byte127 columns × 48 lines
2-byte64 columns × 48 lines
Enlargement of characters X: 1–8 times Y: 1–8 times
Touch switch Switch resolutionAnalog: 1,024×1,024
Mechanical life1 million times or more
Surface treatmentHard coating, Non glare finish 5%
Function switch Number of function switches8 switches
External interface D-Sub 9 pin (CN1)RS-232C, RS-422/485, Asynchronous type,
Data length : 7,8 bits,
Parity : even, odd, none, Stop bit : 1,2 bits,
Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *3bps
Modular 8 pin (MJ1/ MJ2)RS-232C, RS-422/485 (two-wire system), Asynchronous type, Data length : 7,8 bits,
Parity : even, odd, none, Stop bit : 1,2 bits,
Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200bps
CF card interfaceCompatible with CompactFlash TM
EthernetComplies with IEEE802.3
Baud rate: 10Mbps, 100Mbps Cable: 100Ω
Unsealed twist pair, Category 5, Max length: 100m
USBType A, Type B (Ver1.1)
Clock & Back up memory BatteryCoin-type lithium primary battery
Back up memorySRAM 512KB
Back up period5 years (Ambient temperature 25°C)
Calendar accuracyGap±90 sec. per month (Ambient temperature 25°C)
  • *3 Only when connected with SIEMENS MPI



외형도・각 부분 명칭

( mm)

Side view Front view Rear view
Side view Front view Rear view
Bottom view Panel cutout
Bottom view Panel cutout

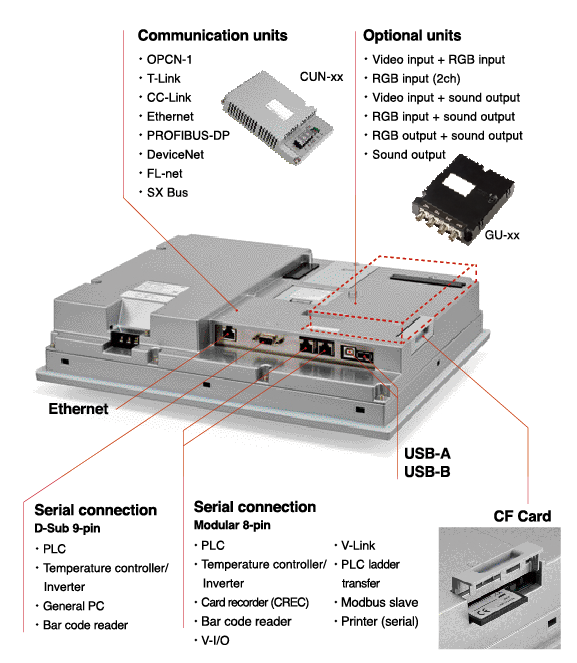

Part Names
  1. 1Display
  2. 2Power lamp
  3. 3Function switch
  4. 4Connector for communication unit (CN5)
  5. 5Connector for optional unit (CN7)
  6. 6Battery holder
  7. 7CF card slot (CF)
  8. 8Dip switch
  1. 9Power supply
  2. 10Modular 8-pin for serial port (MJ1)
  3. 11Modular 8-pin for serial port (MJ2)
  4. 12D-Sub9-pin for serial port (CN1)
  5. 13100BASE-TX/10BASE-T port (LAN)
  6. 14USB-B (slave)
  7. 15USB-A (master)


V8i series


V8 series



V815N Series

항목 내용 언어 갱신일 파일 사이즈
하드 시방서 Hardware specifications for V815N series


접속 메뉴얼 The connection and communication parameters for the V8 series and controllers are explained in details. 2201NE12English2012/8/1034,912KB다운로드
CAD CAD Data of V815N seriesEnglish2009/4/214,629KB다운로드

【Power supply specification】

None: 100 - 240 VAC specification
D: 24 VDC specification (CE/UL/cUL approved)
