Product information page of Programmable Display V9071iW Series


  • 7inches
  • TFT
  • 16.7M color
  • WVGA
  • 3ch serial
  • SD I/F
  • A/mini B USB
  • COM I/F

V9101iW series


  • Wireless LAN
  • LAN 2ch
  • DC power


  • LAN 2ch
  • DC power
  • Product
  • Interface / Dimensions and Part Names
  • System
  • Model

Dimensions and Part Names

Power supply Rated voltage24V DC
Permissible range of voltageDC: ±10%
Permissible momentary power failureDC within 1ms
Demand (maximum rating)DC: 22W or less
Insulation resistance DC500V 10MΩ or more
Physical environment Ambient temperature0~50℃ *1
Ambient humidity85%RH or less (without dew condensation) *1
Operation altitude2,000 meters or lower
AtmosphereNot to be exposed to corrosive gas, or conductive dust
Storage temperature-10~60℃ *1
Storage humidity85%RH or less (without dew condensation) *1
Overvoltage categoryCategory II
Pollution degreePollution degree 2
Mechanical operating conditions Resistance to oscillationComplies with JIS B 3502 (IEC61131-2) Vibration frequency: 5~9Hz, pulsating with:3.5mm,
9~150Hz, Acceleration: 9.8m/s2(1G),X,Y,Z: 3 directions (10 times each)
Resistance to shockComplies with JIS B 3502 (IEC61131-2) Peak acceleration: 147m/s2(15G), X,Y,Z:
3 directions, three times each (18 times in total)
Electric operating conditions Resistance to noiseNoise voltage: 1,000Vp-p, pulse width: 1μs, pulse rise time: 1ns
Resistance to static dischargeComplies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions GroundingGrounding resistance: Less than 100Ω, FG/SG separation
StructureFront panel:Complies with IP66, Type 4X/13 (when waterproof gasket is installed)
Rear cover:Complies with IP20
Form: Single unit, Installation method: Panel mounting
Cooling systemNatural air cooling
Dimensions W*H*D(mm)201.6×147.6×60.3
Panel cutout (mm)187.2×133.4(+0.5/-0)
Case color Light gray
Material PC
  • *1: Use at a wet-bulb temperature of 39°C or less because higher temperatures may cause failure.

Performance Specifications

Screen memory (FROM) 64MB
Backup memory (SRAM) 800KB
Display Display deviceTFT color LCD
Display size7″wide
Colors16.7 million *2
Backlight life100,000 hours
Touch switch TypeCapacitance
External interface D-Sub 9-pin (CN1)*3RS-232C, RS-485(two-wire system), RS-422(four-wire system), Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none,
Stop bit: 1, 2 bits, Baud rate: 4800, 9600, 19200, 38400, 57600, 76800, 115200 bps
Modular 8-pin
RS-232C, RS-485(two-wire system), RS-422(four-wire system)*4 , Asynchronous type,
Data length: 7,8 bits, Parity: even, odd, none, Stop bit: 1, 2 bits, Baud rate: 4800, 9600,
19200, 38400, 57600, 76800, 115200, 187500*5 bps
SD cardOne card slot provided as standard
Baud rate: 100Mbps,
Wireless LAN*6Complies with IEEE802.11b/g/n(2.4GHz)
USBType A,Type mini-B(Ver.2.0)
Sound output-
Clock Backup period5 years (Ambient temperature 25°C)
Calendar accuracyGap ±90 sec. per month (Ambient temperature 25°C, when power is not supplied)
Standard CE markingEN61000-6-2,EN61000-6-4
Radio Act*6Japan:TELEC
Canada:IC RSS
South Korea:KC
Classification Standard-
  • *2: For displaying pictures, 3D parts,video, and RGB input (excluding high-speed mode) only. Other parts are displayed in 65,536 colors.
  • *3: Optional unit(DUR-00) is required for the V9071iW and V9060iTD.
  • *4: 187,500 bps (four-wire system) for the V9071iW and V9060iTD MJ2 only.
  • *5: Only for Siemens MPI (Incompatible with DUR-00).
  • *6: Wireless LAN-compatible products only.
  • *7: Only for Hardware Ver. f or later. Applicable standard for Hardware Ver. a to e is UL 508.

Dimensions and Part Names

(Unit: mm)

Side view Front view Rear view
V9071iW Side viewV9071iW Front viewV9071iW Rear view
Bottom view Panel cutout
V9071iW Bottom viewV9071iW Panel cutout
Part Names
  1. 1Display
  2. 2Function switch
  3. 3Power lamp
  4. 4Communication unit connector (EXT1)
  5. 5Fall prevention hook
  6. 6Optional unit connector (EXT2)
  7. 7SD card access LED
  8. 8Battery holder
  9. 9DIP switch
  10. 10USB cable holding hole
  11. 11SD card connector
  1. 12Sound output connector (AUDIO)
  2. 13Power input terminal block
  3. 14Modular jack 1 (MJ1)
  4. 15Modular jack 2 (MJ2)
  5. 16PLC connector (CN1)
  6. 17100BASE-TX/10BASE-T port (LAN)
  7. 18USB-A(U-A)
  8. 19USB mini-B(U-B)
  9. 20Screw hole
  10. 21Wireless LAN antenna connector
  11. 22100BASE-TX/10BASE-T port (LAN2)
  12. 23Slide switch

System Configuration

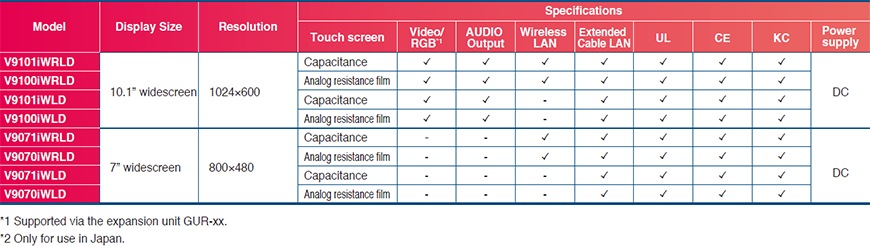

Advanced Model

Advanced Model
