  4. V806N series

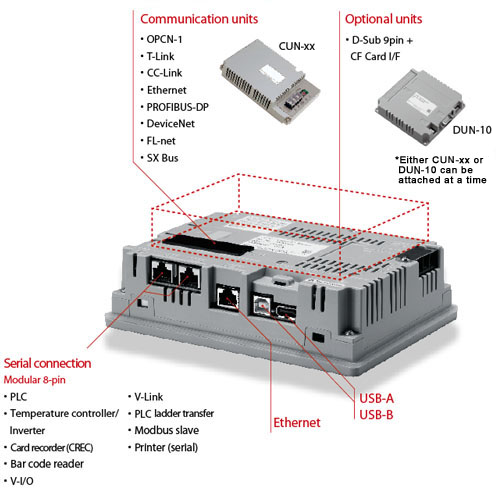

Product information page of Programmable Display V8 Series


  • 5.7 inches
  • TFT
  • 2ch serial
  • AB USB
  • COM I/F
  • QVGA


  • 64K color


  • Ethernet CF Option


  • Ethernet option CF Option


  • 64K color


  • Ethernet CF Option


  • Ethernet option CF Option


  • Mono


  • Ethernet CF Option


  • Ethernet option CF Option
  • Specifications
  • Dimensions
  • System Configuration
  • Download
  • Models

Genneral Specifications

Power supply Rated voltage24V DC
Permissible range of voltage24V DC±10%
Permissible momentary power failureWithin 1ms
Demand (maximum rating)23W or less
Inrush current20A, 2ms
Insulation resistance 500V DC, 10MΩ or more
Physical environment Operation ambient temperature0°C ~ +50°C
Storage ambient temperature-10°C ~ +60°C
Operation ambient humidity85%RH or less (without dew condensation, Max. wet bulb temperature: 39 or lower) *1
Resistance to solventNo attachment of cutting oil or organic solvent
AtmosphereNot exposed to corrosive gas or conductive dust
Operation altitude2,000 meter or lower
Contamination level *2 Level 2
Mechanical Resistance to oscillationVibration frequency: 10~150Hz, acceleration: 9.8m/s 2(1.0G) pulsating width: 0.075mm, X,Y,Z: 3 directions 1 hour each way
Resistance to shockPulse shape: half-sine, peak acceleration: 147m/s 2(15G), X,Y,Z: 3 directions, six times each way
Electric Noise proof1500Vp-p (pulse width 1 s, pulse rise time : 1ns)
Static dischargeComplies with IEC61000-4-2, contact: 6kV, air: 8kV
Installation conditions GroundingGrounding resistance : Less than 100Ω , FG/SG separation
StructureProtect structure: Front panel: Compatible with IP65 (when water-proof gasket is used.)
Rear cover: Compatible with IP20
Form: Single unit
Installation method: Panel mounting
Cooling systemNatural air cooling
Dimensions W×H×D(mm)182.5×138.8×50.8
Panel cutout (mm)174×131 (+0.5/-0)
Case color Gray
Material PC/ABS
  • *1 Keep wet bulb temperature under 39 to avoid an accident.
  • *2 Contamination level is an index that shows the incidence rate of conductive substance. At Level 2, only nonconductive substance is produced, but a temporary conductive state may occur due to dew concentration.

Performance Specifications

V806iTDN V806TDN V806iCDN V806CDN V806iMDN V806MDN
Display specifications Screen memory4.5MB
Display deviceTFT color LCDTFT color LCDTFT monochrome LCD
Resolution W:H(dots)320×240
Display size5.7 inches
Colors65,536 colors (without blinks)/ 32,768 colors (with blinks)16 grayscale(with blinks)
Backlight Auto OFFLit in normal (Set by the user)
Power lampLit in normal condition, blinks in alarm condition such as blowout of backlight bulbs
Contrast adjustmentFixedAdjustable(Function switch or macro switch)
Brilliance control3 levels (Adjusted to 128 steps by macro command)Fixed
Number of characters 1/4 size40 columns × 30 lines
1-byte40 columns × 15 lines
2-byte20 columns × 15 lines
Enlargement of characters X: 1~8 times Y: 1~8 times
Touch switch Switch resolutionAnalog: 1,024×1,024
Mechanical life1 million times or more
Surface treatmentHard coating, Non glare finish 5%
Function switch Number of function switches6 switches
External interface D-Sub 9 pin (CN1)RS-232C, RS-422/485, Asynchronous type,
Data length : 7,8 bits,
Parity : even, odd, none, Stop bit : 1,2 bits,
Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200, 187500 *3bps
Modular 8 pin (MJ1/ MJ2)RS-232C, RS-422/485 (two-wire system), Asynchronous type, Data length : 7,8 bits,
Parity : even, odd, none, Stop bit : 1,2 bits,
Baud rate : 4800, 9600, 19200, 38400, 57600, 76800, 115200bps
CF card interfaceCompatible with CompactFlash TM
EthernetComplies with IEEE802.3
Baud rate: 10Mbps, 100Mbps Cable: 100Ω Unsealed twist pair, Category 5, Max length: 100m
USBType A, Type B (Ver1.1)
Clock & Back up memory BatteryCoin-type lithium primary battery
Back up memory(SRAM)512KB128KB512KB128KB512KB128KB
Back up period5 years (Ambient temperature 25°C)
Calendar accuracyGap±90 sec. per month (Ambient temperature 25°C)
  • *3 Only when connected with SIEMENS MPI



    Dimensions/Part names

    ( mm)

    Side view Front view Rear view
    Side view Front view Rear view
    Bottom view Panel cutout
    Bottom view Panel cutout
    Part Names
    1. 1Display
    2. 2Power lamp
    3. 3Function switch
    4. 4Connector for communication unit (CN5)
    5. 5Connector for optional unit (CN7)
    6. 6Battery holder
    7. 7CF card slot (CF)
    8. 8Dip switch
    9. 9Power supply
    1. 10Modular 8-pin for serial port (MJ1)
    2. 11Modular 8-pin for serial port (MJ2)
    3. 12D-Sub9-pin for serial port (CN1)
    4. 13100BASE-TX/10BASE-T port (LAN)
    5. 14USB-B (slave)
    6. 15USB-A (master)
    7. 16Screw port for fixing USB cable lock
    8. 17Inlet port for fixing USB cable
    9. 18Slide switch

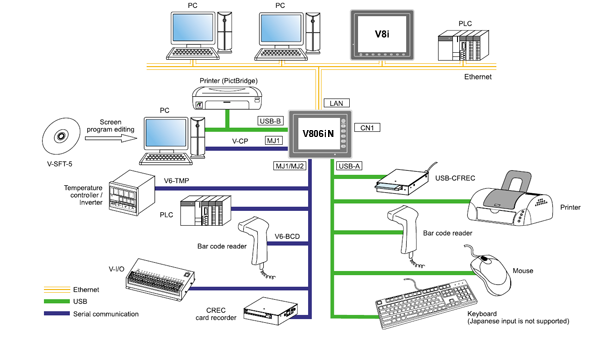

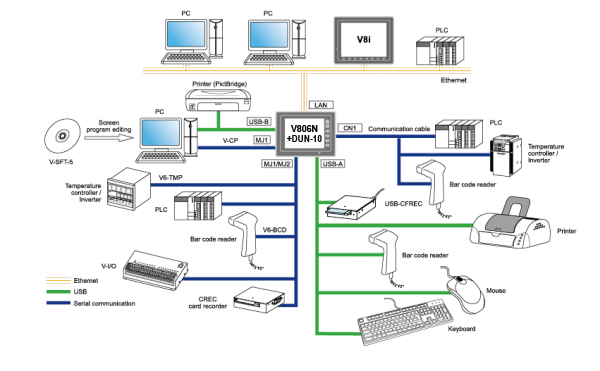

    System configuration





    Download data of V806N Series

    Item Description Language Updated date File size
    Hardware Specifications Hardware specifications for V806N series


    Connection Manual The connection and communication parameters for the V8 series and controllers are explained in details. 2201NE12Eng8/10/201234,912KBDownload


    CAD Data of V806N seriesEng23/5/20085,385KBDownload
    CAD Data of V806N series + DUN-10Eng4/2/20109,993KBDownload

    【Functional specification】

    i: With built-in LAN port / Built-in SRAM 512 kbytes
    None: Without built-in LAN port / Built-in SRAM 128 kbyte

    【Device specification】

    T: TFT color LCD (QVGA)
    C: TFT color LCD (QVGA)*1
    M: TFT monochrome LCD (QVGA)*2
    • *1 Hardware version “a” to “q” : STN color LCD (QVGA)
    • *2 Hardware version “a” to “q” : STN monochrome LCD (QVGA)
